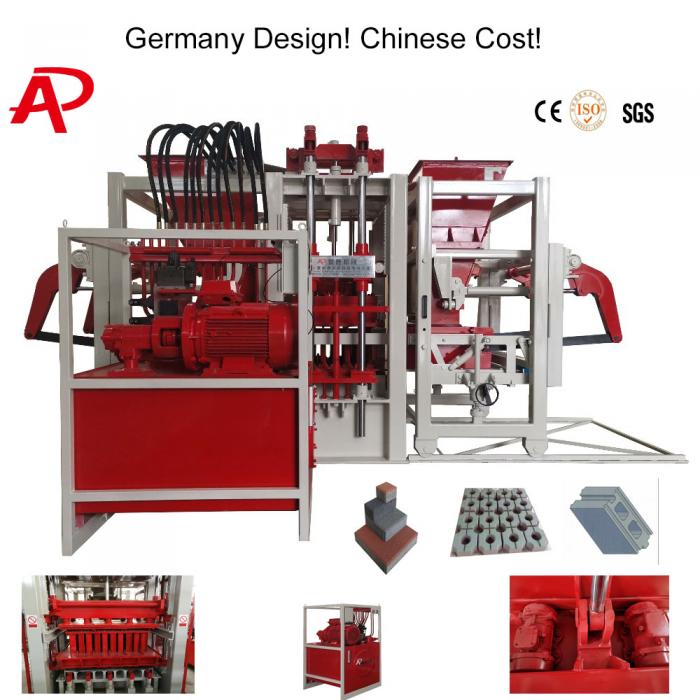

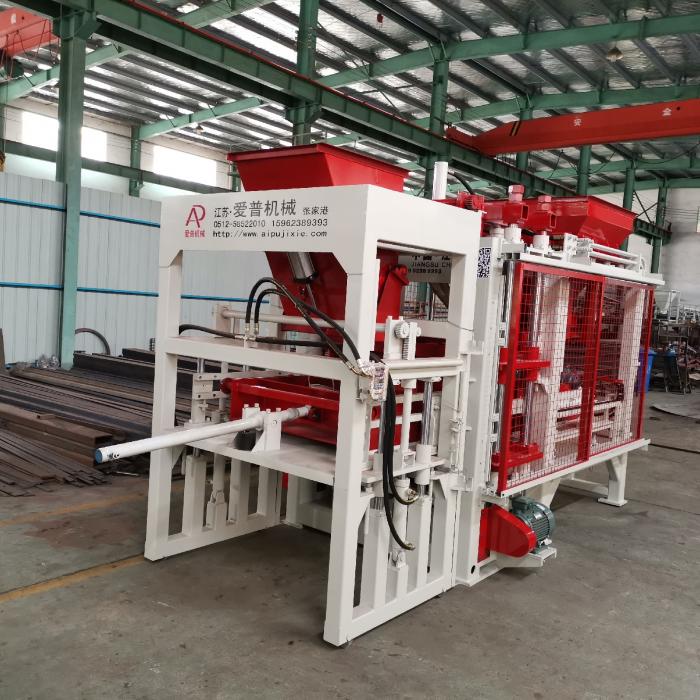

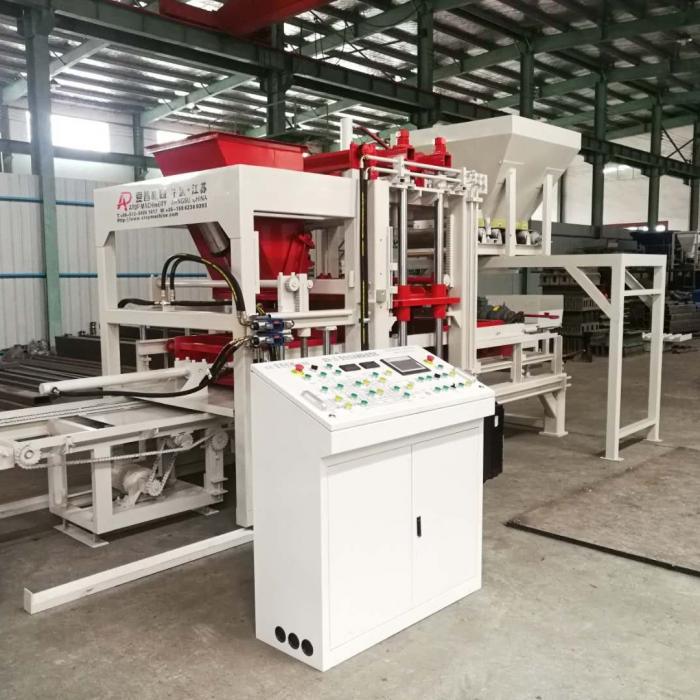

Automatic Concrete Cement Brick Forming Machine

Name:Automatic Concrete Cement Brick Forming Machine

Product Detail

Automatic Brick / Block Forming Machine

Features:
1.Automatic production line for concrete block making,manpower saving to control the cost.
2.Central control system ,which automatically weighs and scales the raw materials,making sure the proportional ratio is precise, so as to guarantee the quality of concrete blocks.
3.Environmental protection design and can work under all weather condition.
4.High production output of concrete blocks,meets the large demand of big projects.
5.Compatibility improve the adaptability of the machines,easy to upgrade the machine.


Raw Material:
sand, gravel, stone, cement, can add a lot of fly ash, slag, steel slag in coal gangue, ceramic, perlite, construction waste, domestic waste and other industrial waste,etc.


Technical Specifications


Model

QT6-15

QT8-15

QT10-15

Cycle Time

12-18s

12-18s

12-18s

Vibration Force

60kN

80kN

100kN

Pallet Size

850 x 680 x (8-35)mm

950 x 850 x (8-35)mm

1250 x 850 x (8-35)mm

Installed Power

31KW

43.5KW

52KW

Motor Frequency

50HZ

50HZ

50HZ

Total Wright

7.5T

13T

15T

Machine Size

5210 x 3530 x 2480mm

7200  x 2100 x 2825mm

7200 x 2300 x 3000mm

QT8-15

QT10-15

Block Type

Block Size(L*W*H)

Pcs/
Mould

Pcs/
Hour

Pcs/
Shift

Pcs/
Mould

Pcs/
Hour

Pcs/
Shift

Pcs/
Mould

Pcs/
Hour

Pcs/
Shift

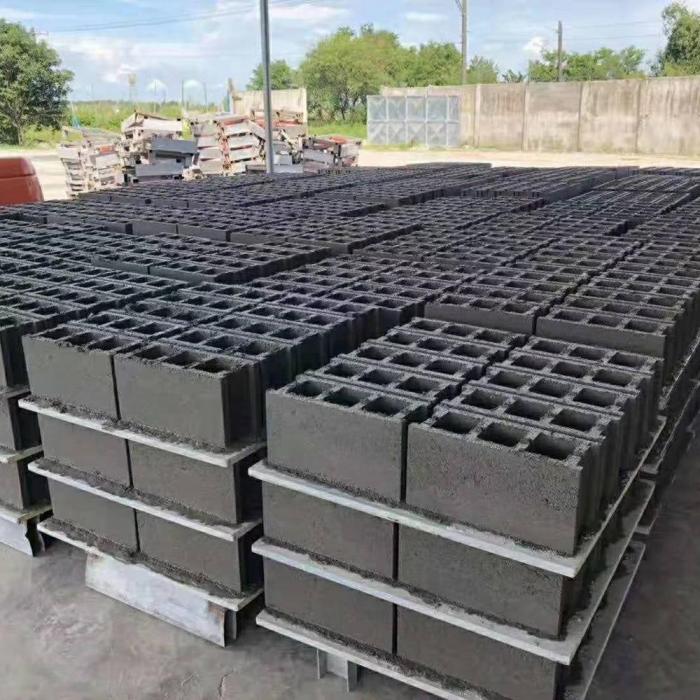

Block

390*190*190mm

6

1440

11520

8

1920

15360

10

2400

19200

Standard Brick

240*115*53mm

36

10800

69120

45

10800

86400

54

12960

103680

Perforated Brick

240*115*90mm

18

8640

34560

25

5040

40320

27

6480

51840

Floor Brick

200*100*(60-80)mm

21

4320

30240

21

5040

40320

32
